3-D and 3-DLaser Profiling and Camera Transporters from Municipal Equipment Sales, Inc. We look forward to earning YOUR business. Scroll down the page or use the links, below, to access info on our cameras, 3-D profiling systems and transporters. Go here to see our line of pipeline inspection vehicles and software.
Another Alternative: The RST Econo TrailerThe "Econo Trailer" design is an entry-level unit that allows a contractor or City to video sanitary or storm drain line infrastructure to be in compliance with the State and Federal Guidelines. If you are not quite ready for a pipe inspection system costing up to $150,000. we can furnish you with our Econo Trailer for far less than that amount (with air conditioning). The trailer package includes training of the operators and delivery in the southeast US. All equipment is upgradeable to truck mount systems. It is mainline-rated and comes with a computer system that will identify all faults and burn a CD or DVD report. See our Video Inspection Vehicles and Software page for this and other truck-mounted options.  We proudly offer the high quality, innovative video pipeline inspection systems designed and manufactured by RS Technical Services.From Mini to Mainline Cameras, Transporters of all types and sizes, multiple installations and more, RST -- and Municipal Equipment, Inc. -- can meet all your inspection needs.

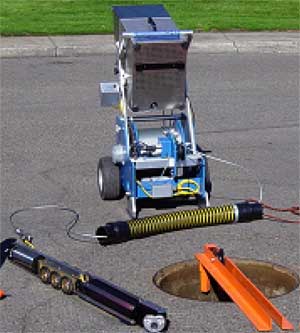

RST "Private Eye" Camera Inspection System
Jet Camera System for municipalities and contractors.
System consists of three components: Camera, Reel, & Controller Camera: The camera is a color, Hi-Res wide lens, preset focus, and large dept field, utilizing (4) Zion light bulbs in stainless steel housing. The camera operates on 12-volt power. Camera will be installed on the front of a jetter nozzle skid. Reel: Reel is constructed from aircraft grade alum., anodized for corrosive protection. The reel holds 750 feet of 3/16" double armor sincon wire. The reel is designed to operate of a 12 volt DC automotive battery. A 1/6 HP gear reductive chain drive motor powers the reel. The reel has power in, power out and freewheel. The torque and speed adjustments of the reel are controllable by a special controller. Controller Unit: The controller is housed in a NEMA 4 watertight box. The picture is viewed on a LCD 9-inch screen. A special 12-volt VCR is included in mounted box. Optional upgrades: Footage encoder and measure wheel mounted on the reel. A micro process overlay unit built into the control unit.

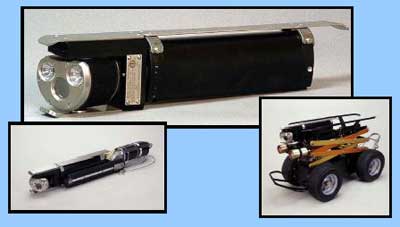

The Omni Eye III Zoom Camera
RST Nova Star Zoom Camera
The Nova Star maintains the notable RS Technical Services reputation for innovative technology, utilizing high-resolution video and total zoom capabilities. The Nova Star is compatible with all of the RS Technical transporters, including the TranSTAR for small lines, and the Steerable Storm Drain Tractor for large line inspections.
The Nova Star is designed to operate in wet environments, such as sanitary sewers and storm drains, while mounted on tractor transporters or pull skids. The compact size of this camera makes it the ideal solution for the RS Technical Services crawler series TransStar transporter. In addition, it is capable of operating on up to 2,500' of double-armored, single conductor or multi-conductor cable.
Features include: Integrated pan and tilt head with built-in lighting. Camera head swing and rotation, lamp intensity and zoom features are remotely controlled and adjustable from the operating viewing station or at the cable reel. Return the camera head to the straight-ahead and centered position with the Home Function. Accessories include maintenance kit with replacement parts, durable foam lined storage and transportation case and operation and installation manuals. Available options include PAL format and an inclinometer function. For more information or a handy reference, click on the link below to download the brochure for the RST Nova Star Zoom Camera.
RST 1300 Series Ultra Mini Mainline Video Camera
The model 1306 color mini camera is high resolution video pipeline inspection camera designed to view laterals and mainline sewer pipes. The 1306 is capable of negotiating multiple 90 deg. bends in 4" or larger lines and 3" sweeps and 90-degree bends in 3" lines. The circuit features .1 Lux high performance camera electronics. This foundation combines with the latest digital video processing and a high frequency (DWM) power supply. The integrated high efficiency lighting, with four low voltage Xenon (field replaceable) lamps, is capable of illuminating line sizes up to 16" in diameter. The camera is equipped with a field replaceable tail. For more information or a handy reference, click on the link below to download the brochure for the RST 1300 color video camera.
Standard Push Reel for RST 1300 Series Ultra Mini Mainline Video CameraThe push cable reel has a steel frame and a 30-inch diameter basket that is capable of holding up to 300-feet of .375-OD integrated push rod/single conductor cable.

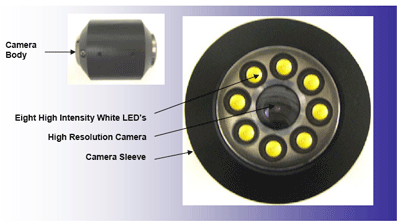

A permanently sealed mercury wetted slip ring assembly allows noise-free video transmission and maintenance-free operation. The push reel is supplied with a 14-foot RG-58 coaxial cable that is terminated with an "N" connector at both ends for the connection from the push reel to the controller. The reel offers easy portability. It weighs less than 35 pounds when loaded with 200 feet of push cable. For more information, please give us a call or send us an email. 1530 Mini System
|
| 3-D Pipeline Inspection |

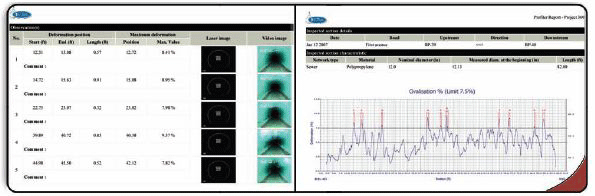

A video recording of the passage of the CoolVision is done at the same time -- and at the same speed -- as the CCTV video recording. A link between the two inspections is provided through the interactive report interface. A picture of the laser ring and a picture of the CCTV inspection at the same location are presented on the report. In tests conducted by an independent third party laboratory, CoolVisionTM has achieved a precision of 0.25 %. This accuracy is unique on the market.
The CoolVision Hardware System is a safe, low cost solution that offers a number of enormous advantages over old-style, 2-D pipeline inspections. These include:
Sophisticated Technology Made Simple
|
| Camera Transporters |
The RST Crawler Transporters are designed to carry the Omni Eye Zoom Camera and are available in both single and multi-conductor configurations. They operate in line sizes from 6" - 30" with axle and driveline extensions. Crawler weights are adjustable with the addition or removal of brass ballast plates.
A drive chain, combined with a high torque, permanent magnet .25 HP motor with a right angle gearbox and 18:5:1 gear ratio, provides necessary power to pull 1,500' of single conductor or multi-conductor cable. (Actual distances will vary with line conditions).
The crawlers have three forward speeds, one reverse, a stop function and a freewheel mode for easy retrieval. Travel speeds are up to 55' per minute at full power. Travel speeds and direction are controlled by desktop or hand held controller.
Specially designed, contoured pads, attached with dual stainless steel rivets on stainless steel chain, provide a large contact surface for maximum traction.
The crawlers are adaptable to all R.S. Technical Services mainline systems.
See details about each model below. For more information, please give us a call or send us an email.
The Mainline Tractor Transport Vehicle is designed to operate on armored single conductor cable. It is capable of transporting stationery-head Mainline cameras, rotating head cameras, as well as standard voltage mini cameras (with the appropriate tractor cradle adapters) through water mains, sanitary sewers or storm drains.
Wheel tracking widths are adjustable for pipeline sizes that are 6-inches to 24-inches in diameter when the appropriate axle extensions are used. An axle extension user's guide is provided as standard equipment with the tractor. The tractor provides the required traction drive to inspect pipelines up to 1200-feet from point of entry. It can travel at speeds of up to 45-feet per minute when carrying up to 13-pounds. Under heavy loading, controls within the tractor automatically increase the torque of the motor.
The tractor can negotiate 5/8-inch offsets and clear 5/8-inch protruding laterals in 6-inch lines. It has a minimum of three forward speeds, a stop function, and freewheeling capabilities for easy extraction.
Power: The Mainline Tractor Transport Vehicle's built in power supply receives its control signals and power from the armored single conductor cable. The power supply also regulates the current and will automatically increase the motor torque if excess loading causes the power supply current to reach 1 ampere. Power is transferred to the wheels through a low maintenance gear assembly that is enclosed in a sealed housing.
Controls: The tractor is controlled from an auxiliary desktop unit, which plugs into the camera controller at the viewing station.
Physical Description: The tractor's motor housing is fabricated from aluminum and stainless steel. It is waterproof. The motor has hardened steel reduction gears in a sealed housing. Length: The motor and wheel drive assembly is less than 25-inches long.
Electronics: All electronic components are solid state. Available options include reverse gear; hand-held auxiliary controller with a 14-foot cord; various tire designs to meet any inspection requirements.
For more information, please give us a call or send us an email.
The TranSTAR's innovative technology utilizes easy access to the transporter chassis to allow swap-out of the motor drive gear set when a change in motor torque is needed.
The TranStar transporter is water resistant (per IPX7) and has an operating temperature range of between -10 degrees and +40 degrees Centigrade. It operates on all standard RST single conductor systems, although an optional multi-conductor is available. Maximum power input is 180 watts (peak); 1.5 amps.
The maximum pipe size the TranSTAR can access is adjustable via optional axle and wheel combinations. Speed range is 5 to 70 feet per minute. The TranSTAR is 18.9" in length, has an 11" wheelbase, is 4.2" wide and tall, with a base weight of 25 lbs (w/o camera).
Quick Change Gears: Accessible motor drive gear on transporter chassis. Install gear sets of alternate ratios to optimize the transporter for the existing or potentially changing load conditions.
All Wheel Drive: Gear driven wheels employing ball-bearing supported steel precision machined gears encased in brass. Sealed hubs prevent moisture or dirt from entering gear case.
Freewheel Clutch: Allows rapid retrieval once inspection is complete.
Rare-Earth Permanent Magnet Motor: Rated at 1/8 HP (90 watts, continuous) to provide a smooth, powerful drive source.
Single Conductor Coax Control: Speed control and DC power from single conductor coax TV cable.
Torque Multiplier Circuit: Internal control when that extra boost is needed. Precision-Machined Construction: CNC precision-machined brass 360-plate gear housing shafts and stainless steel hubs.
For more information or a handy reference, click on the link below to download the brochure for the TranSTAR Transporter.
The Steerable Storm Drain Tractor Transporter is a 4-wheel drive, steerable inspection vehicle, with a remote-control elevation platform to raise and lower the camera viewpoint. To enable full remote control, it is supplied with an auxiliary controller. The Steerable Storm Drain Tractor Transporter has been designed to transport any of our mainline cameras through storm drains and sewer lines 2-feet to 12-feet in diameter.
Length: 36 inches (with front bumper). Width: 15 inches Height: 15 1/2 inches (with elevator fully lowered). Weight: 100 lbs. approximate.
For more information, please give us a call or send us an email.
The Mighty Mini Tractor Transporter is a four wheel drive inspection vehicle developed for 4 inch lines. It has an adjustable (manual) camera mounting for central viewing in lines up to 12 inches with an optional set of tires.
The Mighty Mini Tractor Transporter is designed to transport RST 1300 Series cameras. It can be supplied with a dedicated camera or with a dual purpose camera used with the RST Push Cable System. The push cable cameras already in the field need only a minor factory modification to allow use of the Mighty Mini Tractor to transport them. The camera can then be used with either device.
For more information, please give us a call or send us an email.
After the Sale: You can always count on our experienced support personnel to provide you with follow-up services, including replacement parts and product information.
